1200x1000x760 Pallet Box 1691C3: Blue Z/CAP/1691C3/BU

1691c3_20534251
Featured
1691c3_205342511691c3-2_13772786381691c3-3_202274753
£ 165.00 excl VAT (£ 198.00 incl VAT) each
DELIVERY NOT INCLUDED

Colour
1 Blue item in stock

Pallet Box Lid
Not available
Wheel Type
Braked Castors

Up to 4 items ship on 1 pallet.
Delivery is extra click for estimate

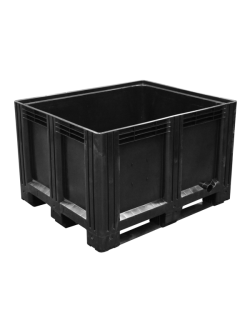

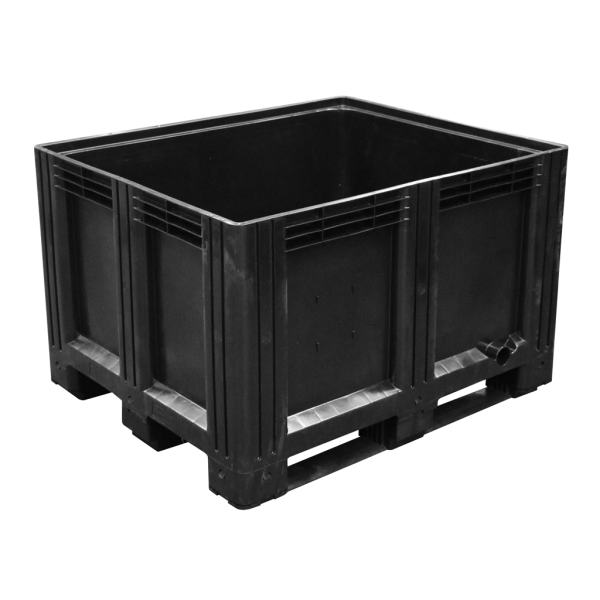

1200x1000 Pallet Box 1691C3

Plastic box pallets have a varied number of uses and can be found in all industries including food, medical through to automotive. The pallet boxes are a standard pallet base size and have the option for feet, skids, or wheels to be fitted underneath. The pallet skids are recessed on the edges to sit inside the top lip to give a positive and safe stacking. The box pallets are suitable for food and are fully recyclable.

The plastic pallet box is made with a double-skinned structure, reinforcing corner and central side columns, and reinforcement ribs in the base structure, all of which substantially improve resistance to compression loads. The pallet box is suitable for use with heavy loads during transport, storage of bulk and packaged products or liquids.

The plastic pallet boxes are constructed from High Density Polyethylene (PE-HD). As a result, the pallet box has excellent resistance to shocks, stacking, and temperature extremes. They are suitable for forklifts and any type of tipping devices.

These are the specifications for our solid side, 1200x1000 pallet box. Some dimensions vary with the options such as skids or wheels.


Base size 1000x1200mm
Pallet box Capacity 610 litres
Pallet box Load Capacity 510kg
Type Full sided
External Dimensions (with feet) 1200x1000x760mm
External Dimensions(with skids) 1200x1000x780mm
Internal Dimensions 1110x810x605mm
Weight - 2 skids version 42kg
Weight - 3 skids version 44.5kg
Static Load Capacity 4800kg
Stackable Quantity High 8 high

Optional Pallet Box Lid

The optional lid can be a useful addition to a pallet box. It offers the option to store boxes outside and helps to reduce cross-contamination where necessary.

Plastic Pallet Box Lid

Internal Dimensions 1200x100mm
External Dimensions 1215x1015mm
A 70mm
B 35mm
C 260mm
D 25mm
E 840mm
F 255mm
G 175mm
K 165mm
M 165mm
N 165mm
Q 162.5mm
R 165mm
S 360mm
Weight 8.8kg
Height increase when stacked with other lids 35mm
Height increase when stacked with other pallet box 35mm

Skids vs Feet

To skid, or not to skid, that is the question! Whilst poor Hamlet has been mis-quoted a multitude of times, the need for skids on pallet boxes is worth considering. The moulding of the plastic pallet box itself is the same. You can have simple 4 corner feet which still have rebates in to allow safe stacking. Alternatively, your pallet box can sit on pallet style skids, in either 2 or 3 versions. Skids offer several advantages:

  - They allow the pallet boxes to be stored in pallet racking

  - They allow the pallet box to be emptied by rotating forklift forks

As regards to load security on a forklift when in motion, skids will prevent the pallet from tipping off sideways when cornering, but the corner feet will equally stop the pallet box from sliding off. The driver would have to be cornering particularly exuberantly to tip off a pallet (some do of course!!!)

The disadvantages to skids is primarily simply damage. Just like a wooden pallet, if they get hit by a forklift they break and splinter. They are also a nuisance when using a manual pallet truck. There is of course a cost implication as well, up to 10% saving.

Its fair to say that the bulk of plastic pallet boxes sold in the UK have 3 skids fitted, but that is self-perpetuating as then distributors simply stocks boxes with 3 skids…. So then you can only buy boxes with 3 skids…. “Though this be madness, yet there is method in it.” (Hamlet- Polonius)

Feet

As standard, the plastic pallet box comes with 4 feet, offering good stability. The outer edges of the feet are recessed to locate when stacked.

Skids

3 skids come as standard, as an option we can fit 2 skids.

Pallet Box With Skids

As an additional option, we can fit the plastic pallet box with wheels. There are 2 different castor patterns we can use with markedly different handling qualities. You can decide which option and configuration best suits your application. There is also a choice of wheel construction and brakes.

Corner to Corner Castors

4 swivel castors on each corner, easy and obvious. Very manoeuvrable and easy to use in tight spaces. However, if you need to push them any great distance, then just like a full shopping trolley, they are hard to push in a straight line and around corners. 2 fixed and 2 swivel castors solves this problem, but with 2 fixed castors manoeuvrability in tight spaces is compromised.


Diamond Fitted Castors

The Castors are fitted in a diamond pattern. 2 fixed castors in the middle and a swivel castor at either end. This configuration allows the pallet box to rotate in it’s own foot print. The fixed castors mean it is more user-friendly when pushed in a straight line, however they also restrict the pallet box from being pushed sideways.

Wheels

As standard, we fit 125mm diameter wheels in pressed steel castors. Braked swivel castors, as an additional option a braked castor with foot brake can be fitted.


There are a multitude of different wheels out there. As standard, we offer a white nylon wheel or a rubber tyred wheel. If you have a specific requirement, please contact us. The white nylon wheel is a solid hard wheel, very hardwearing and with a lower rolling resistance so easier to push. The rubber wheel is a rubber tyre on a nylon centre. The softer rubber is quieter and offers a more cushioning “ride”. It is also non-marking on floors.

Additional Options for the Pallet Box

As if you haven't got enough choice already, we can offer yet more options...

Range of Colours Available

There is a minimum quantity of 200 boxes for a coloured box. This is a substantial number, but please bear in mind that 20 to 30 boxes have to be run off to fully bleed out the previous colour.

Optional Tap Fittings

Please contact us regarding optional taps and bungs.

Adhesive Card Holder

The use of an adhesive card holder can hold delivery notes or product information sheets

Markings for Pallet Box

When ordering pallet boxes from us, we can offer personalised markings on the pallet box, normally to identify the pallet boxes as yours or any other information you wish. It can also be your logo adding adding a professional touch to the athsetic look. All markings are carried out at the factory in Italy and have lead time implications. Please ask us for more details.

Embossed Marking

This method of marking, involves an additional engraved tool section in the mould of the pallet box, to emboss your name or logo on the pallet box.

Screen Hot Print Marking

The screen printed option, hot foil printing prints onto the side of the box and is carried out as a separate operation in the factory after the moulding process.


Delivery

For smaller orders, we despatch boxes on a pallet network. To minimize delivery costs, we stack the pallet boxes on top one another, with an additional one inside the other two pallet boxes as shown in the picture below, plus 1 more on top of that. As a result, we can get a maximum of 4 pallet boxes to 1 pallet space.

Delivery of pallet boxes on wheels

In order to get 4 pallet boxes onto a single pallet space, this means we are not able to bolt on the castors first, the castors will be supplied loose in the box. However, if you need the castors fitted, there is a cost implication for the delivery cost as we can then only fit 2 boxes per pallet space.

Please contact us to discuss any questions you may have regarding delivery.

We deliver our plastic pallet boxes to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price for pallet boxes to these regions. Prices do not include VAT.

Collection from our Kettering factory is possible - contact us for a discount if you wish to do this.

Click the button to view the delivery costs to your location.
