Steel Shelving with Spill Sump For Drums

Modular Shelving with Collection Tanks

This is a modular steel shelf system with collection tanks suitable for the storage of between 9 to 24 drums vertically or horizontally. Ideal for hazardous, toxic, harmful or flammable substances the shelving models are initially configured to hold the drums in the arrangements displayed below. Our shelving is designed to hold either 200 litre drums or 60 litre bins.

The modular shelving with its range of accessories provides a flexible solution to the problem of storing bins and drums within a single, safe, structure which can be adapted to different working requirements.

Constructed in steel the shelving is highly stable with the storage shelves adjustable in height. The collection tank at the base has a galvanized steel grille.

The shelving is supplied dismounted with assembly instructions and is easy to assemble because of its slot joint structure.

We have a range of accessories for the shelving. Galvanized support trays SPT011Z makes transfer operations easier and safer. Rotating supports SGF014Z allow for easy positioning of horizontal drums and heavy duty angular protection units PA400 protect and clearly distinguish the frame corners.

For shipping we only charge what it costs us to deliver the products. We charge by the pallet to your postcode, which is calculated in the checkout - or you can collect for FREE from our premises in Kettering. The products have a 3 week lead time.

UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards.

  • UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing
  • UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles
  • UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles
  • UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability
  • UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels
Flammable Symbol Environment Symbol StawaR Certification Premium range

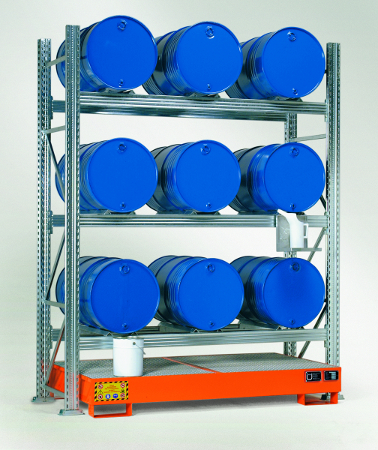

Steel Shelving Diagram

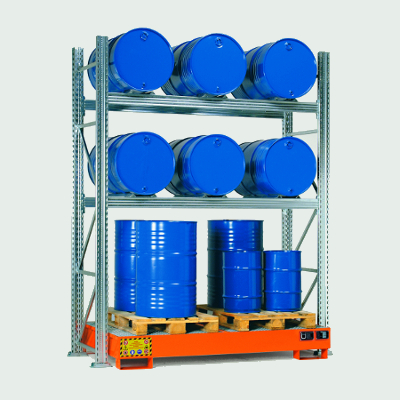

Picture of Steel Shelving
Shelving Model ECO252.9V
Picture of shelving protection
Optional Shelving Angular Protection
Picture of drum rotating suports
Optional Rotating Supports
Picture of Galvanized Support
Optional Galvanized Support Stand
Diagram of Steel Shelving
ECO251.9
Diagram of Steel Shelving
ECO252.9
Diagram of Steel Shelving
ECO252.9V
Diagram of Steel Shelving
ECO290.16V
Diagram of Steel Shelving
ECO290.24V
9 - 24 Drum Shelving Buy Online Now
ModelDrum CapacityUprights HxDCross bars lengthTank WxDxHTank Volume
ECO251.960 L
9 horiz
3000x830 mm1400 mm1340x1250x200 mm270 L
ECO252.9200 L
9 horiz
3000x830 mm2200 mm2140x1250x260 mm615 L
ECO252.9V200 L
6 horiz
3 Vert
3000x830 mm2200 mm2140x1250x260 mm615 L
ECO290.16V200 L
16 Vert
3000x1430 mm2700 mm2640x1340x350 mm1130 L
ECO290.24V200 L
24 Vert
4000x1430 mm2700 mm2665x1340x500 mm1660 L
Shelving Accessories Buy Online Now
ModelDescription
Transfer StandGalvanized Transfer Stand
Rotating SupportRotating Support for Drum
Shelving ProtectorHeavy Duty Shelving Protector

For large orders please contact us.
