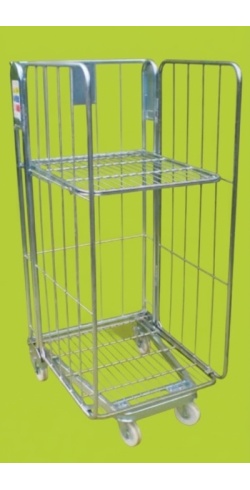

3 Sided Rod Infill A Frame Roll Pallet Z/P/A/3ROD

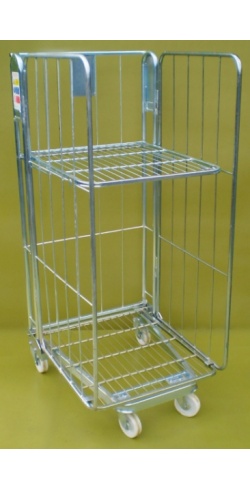

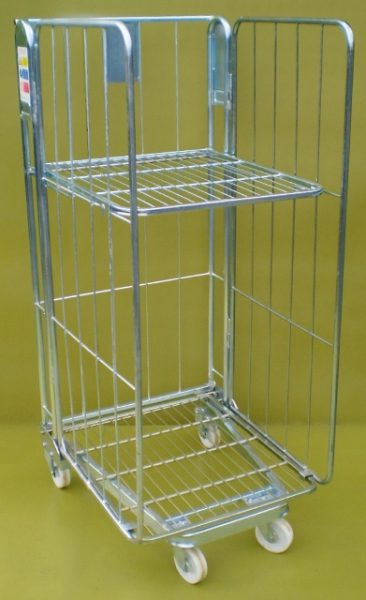

Roll pallet 3 sided a frame

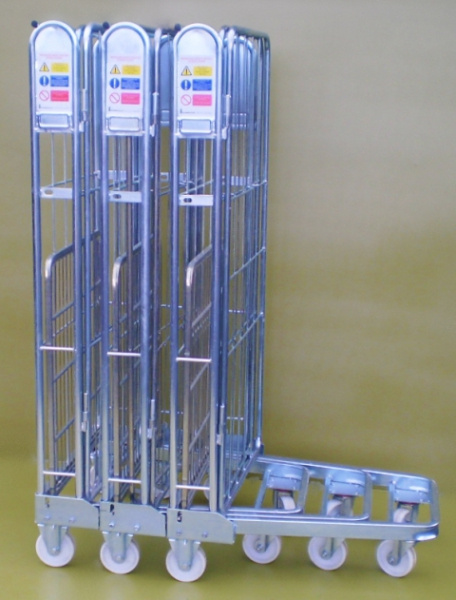

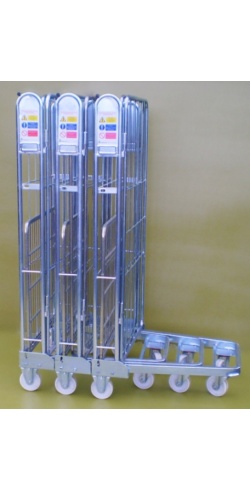

Roll pallet 3 sided a frameNested roll cages
£ 98.00 each

Integral Shelf
Rubber Wheels
Loose Shelf
Wheel brakes
Retaining Strap
Plastic Base

Up to 4 items ship on 1 pallet.
Delivery is extra click for estimate

A mobile roll pallet for the safe and secure transportation of a wide range of goods built upon a strongly constructed ‘A’ frame chassis which is a nesting design saving warehouse space. This nesting A frame range of roll cages encompasses all types and styles. This standard 3 sided Roll Container is open at the front with webbing straps available as an option. The sides are rod infill offering a coarse mesh to retain products. To nest when not in use, the steel deck folds up and the sides then fold in. The cages are then nested into the back of each other, inline nesting like a shopping trolley. Nested space saving is 3:1 floor space saving.

The roll cage is manufactured from prime ERW-grade mild steel with joints welded for outstanding strength and durability. Bright electro-zinc plating with a lacquer coat comes as standard, other finishes are available to order.  Wheels are 125mm diameter, choice of  nylon or rubber tyred with roller bearings, and housed to steel castors with a 2 fixed and 2 swivel configuration.

The roll pallet as standard has a single load bearing deck. As an option, an integral shelf can be fitted, fixed though at 2/3 height. This shelf folds up when not in use to allow nesting and the integral design means it cannot be lost
A frame roll cage integral shelf


Alternatively, loose shelves can be hooked onto any of the horizontal bars when the cage is assembled.
Loose roll pallet shelf


Also available as an option is a plastic deck. As standard the deck is a steel framed with 5mm rods welded in to form a mesh.
We have a plastic  base which can be fitted instead. This plastic deck offers a flat smooth load surface and also hygenic and easy to clean. Fom stock, blue, purple or red colours are available.
Plastic deck for A frame roll cage.

Base Size 735x850mm
Overall Height 1690mm
Internal Height 1425mm
Load Capacity kg 600 kg
Castor Diameter 125mm
Side Options 3 Sided
Unit Weight 40 kg
Finish Bright Zinc Plate
Shelf Option Hinged & Loose

Prices above exclude delivery and VAT.

Delivery is calculated at the checkout according to post code and pallets used to carry your order. We ship roll pallets to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price for the roll pallets to these regions.

Roll Pallets are generally in stock, so lead time is generally 3 to 5 days allowing for a 3 day delivery service depending on your location.
