4 Sided Mesh A Frame + Stable Door Z/P/A/4MESH

2 door roll pallet mesh

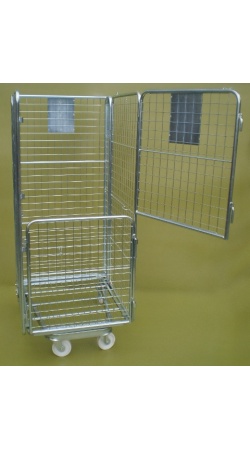

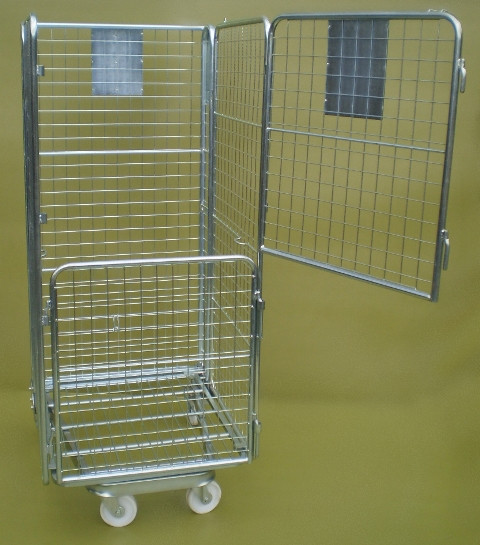

2 door roll pallet mesh2 door roll pallet mesh openNested roll cages
£ 164.00 each

Integral Shelf
Rubber Wheels
Loose Shelf
Wheel brakes
Plastic Base

Up to 4 items ship on 1 pallet.
Delivery is extra click for estimate

4 Sided Mesh Infill A Frame Roll Pallet With Double Door

A mobile roll pallet for the safe and secure transportation of a wide range of goods built upon a strongly constructed ‘A’ frame chassis which is a nesting design saving warehouse space. This nesting A frame range of roll cages encompasses all types and styles. This standard 4 sided Roll Container has double stable front doors allowing the top half of the cage to unloaded first if required. All sides are infilled with a 50x50x3mm mesh panel offering good retention of smaller items. To nest when not in use, the steel deck folds up and the sides then fold in. The cages are then nested into the back of each other, inline nesting like a shopping trolley. Nested space saving is 3:1 floor space saving.

The roll cage is manufactured from prime ERW-grade mild steel with joints welded for outstanding strength and durability. Bright electro-zinc plating with a lacquer coat comes as standard, other finishes are available to order.  Wheels are 125mm diameter, choice of  nylon or rubber tyred with roller bearings, and housed to steel castors with a 2 fixed and 2 swivel configuration.

The roll pallet as standard has a single load bearing deck. As an option, an integral shelf can be fitted, fixed though at 2/3 height. This shelf folds up when not in use to allow nesting and the integral design means it cannot be lost
A frame roll cage integral shelf


Alternatively, loose shelves can be hooked onto any of the horizontal strands of mesh once the roll cage is assembled.
Loose roll pallet shelf


Also available as an option is a plastic deck. As standard the deck is a steel framed with 5mm rods welded in to form a mesh.
We have a plastic  base which can be fitted instead. This plastic deck offers a flat smooth load surface and also hygenic and easy to clean. Fom stock, blue, purple or red colours are available.
Plastic deck for A frame roll cage.

Base Size 735x850mm
Overall Height 1690mm
Internal Height 1425mm
Load Capacity kg 600 kg
Castor Diameter 125mm
Side Options 4 Sided Mesh
Unit Weight 51 kg
Finish Bright Zinc Plate
Shelf Option Hinged & Loose
Style Split Front Gate

Prices above exclude delivery and VAT.

Delivery is calculated at the checkout according to post code and pallets used to carry your order. We ship roll pallets to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price for the roll pallets to these regions.

Roll Pallets are generally in stock, so lead time is generally 3 to 5 days allowing for a 3 day delivery service depending on your location.

Click the button to view the delivery costs to your location.
