Storage Cabinet for 1 IBC Basic Range: Sump Painted Box Galvanized Z/DM/ECO719BZ_485

2012-10-11_016
£ 3,047.00 excl VAT (£ 3,656.40 incl VAT) each
DELIVERY NOT INCLUDED

Finish

Tilted Support Please contact us for price & to order.

Please contact us for delivery price & to order.

Outdoor Storage Unit For 2 IBCs

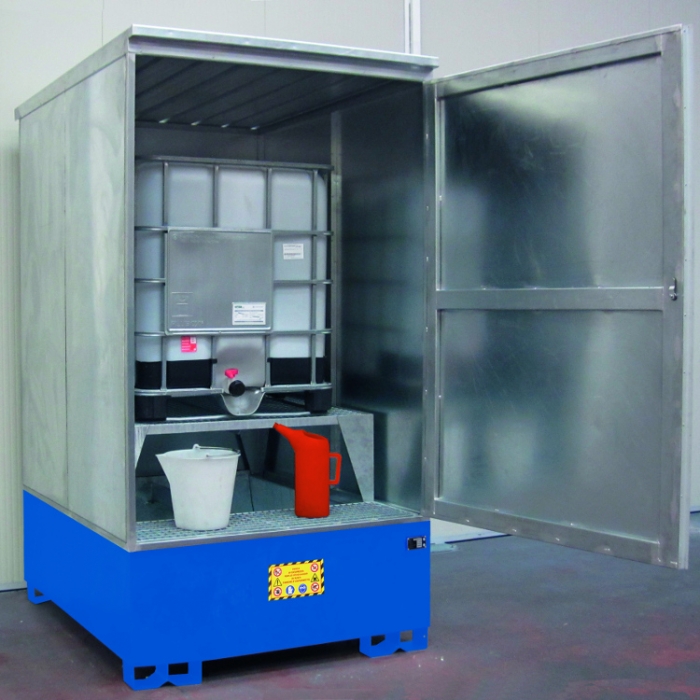

This storage cabinet is suitable for the outside safe storage of 1000 litre IBC's (Industrial Bulk Containers) containing flammable or hazardous materials. Constructed of galvanized sheet steel with a certified steel sump.

This model is designed to accommodate a raised tilted support shelf, model SPC102Z, available as an option, that transforms the cabinet into a safe transfer station.

This is our BASIC range which comprises high quality fully certified sump cabinets with optional accessories and finishes that can be added if required.

Options include air intake ventillation grilles and tilted IBC supports. The air intake grilles are fitted to the cabinets and are required when storing flamable liquids. The tilted support unit allow for easy emptying of the IBC.

Key features of the storage cabinet include:

  • Hot galvanized sheet metal sump
  • Box structure constructed from galvanized sheet steel with corrugated top
  • Sturdy cover and doors
  • Can be locked to protect contents from unauthorised access

The collection tank conforms to the highest level of certification and is supplied with a warning panel and indentification plate fitted to the sump.

For shipping we only charge what it costs us to deliver the cabinets. We charge by the pallet to your postcode, which is calculated in the checkout - or you can collect for FREE from our premises in Kettering. The cabinets have a 3 week lead time.

UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards.

  • UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing
  • UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles
  • UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles
  • UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability
  • UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels
Flammable Symbol Corrosive Symbol Environment Symbol Suitable for outdoors
IBC Storage Cabinet
ProductDimensionsFeaturesCapacityNet Door OpeningInner working Depth
ECO719Z 1405x1810x2625 mm Galvanized 1 IBC 1340x1900 mm 1650 mm
ECO719BZ 1405x1810x2625 mm Galvanized with sump overpainted 1 IBC 1340x1900 mm 1650 mm
ECO719ZB 1405x1810x2625 mm Galvanized and overpainted 1 IBC 1340x1900 mm 1650 mm

For large orders please contact us.

Delivery is extra click for estimate
