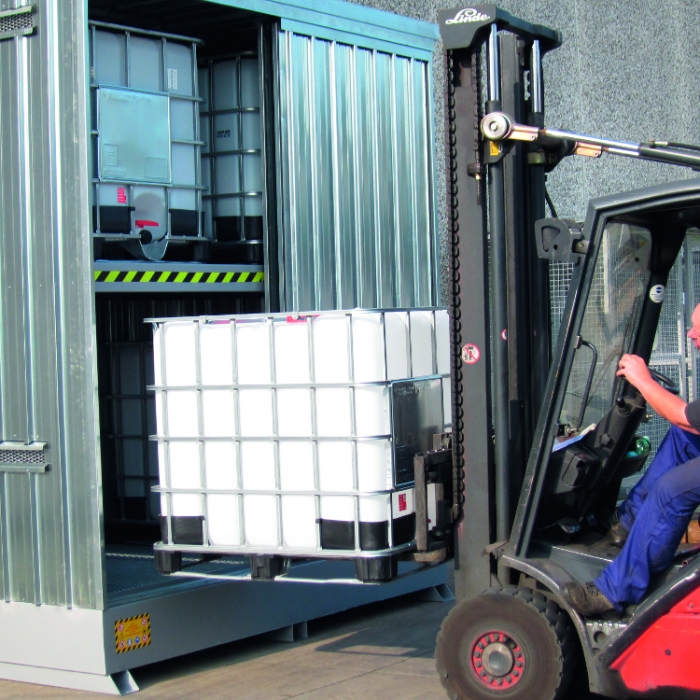

Outdoor Storage Unit For 4 IBCs

This storage cabinet is suitable for the outside safe storage of up to 4 1000 litre IBC's containing flammable or hazardous materials. The upper cabinet is constructed of galvanized corrugated steel for strength and rigidity. The lower sump is constructed from steel painted in colour RAL 9006.

The collection tank is constructed from sheet metal with a hot dip galvanized removable grille suitable for holding spills.

Contact us regarding optional air intake grilles for flammable substances which can be added if required. A model which has an overpainted blue finish is also available.

Key features of the storage cabinet include:

  • Suitable for outdoor storage of 4 1000 litre tanks
  • Certified capacity equal to 1/3 of the total volume storable
  • 2 floors of stacked storage
  • Cabinet made of galvanized corrugated sheet steel
  • Two sliding doors with lock and key
  • Feet height 100 mm with pre-drilling for ground fixing

The collection tank conforms to the highest level of certification and is supplied with a warning panel and indentification plate fitted to the sump.

For shipping we only charge what it costs us to deliver the cabinets. We charge by the pallet to your postcode, which is calculated in the checkout - or you can collect for FREE from our premises in Kettering. The cabinets have a 4-6 week lead time.

UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards.

  • UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing
  • UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles
  • UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles
  • UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability
  • UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels
Flammable Symbol Environment Symbol Suitable for outdoors
IBC Storage Cabinet
ProductFinishDimensions mmDoorway mmCollection Volume
MCKF16PSZ Galvanized3150x1750x33901430x28601350 L
MCKF16PSZB Overpainted3150x1750x33901430x28601350 L
