Galvanized Drum Cabinets For Corrosive Liquids: 2 x 200 L Drums Z/DM/ECO722XP

drum-cabinet-for-corrosive-substances
drum-cabinet-for-corrosive-substancesdrum-cabinet-for-corrosive-substances-closeddrum-cabinet-polyethylene-grilledrum-cabinet-polyethylene-grille-removed
£ 2,285.00 excl VAT (£ 2,742.00 incl VAT) each
DELIVERY NOT INCLUDED

Cabinet Capacity

Please contact us for delivery price & to order.

Storage Unit For 2 or 4 Drums

This range of galvanized and overpainted storage cabinets is suitable for the safe storage of drums of hazardous or corrosive materials with the added height allowing the use of transfer pumps and funnels from within the cabinet.

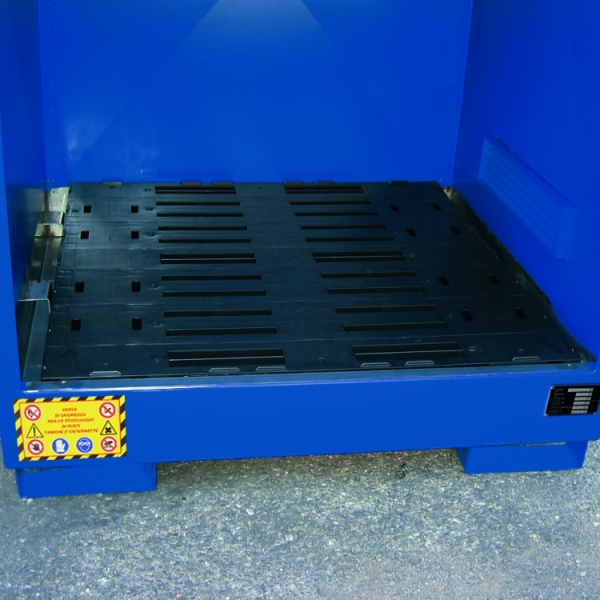

The cabinets are constructed from galvanized and overpainted sheet steel with a collection tank constructed entirely of stainless steel with a polyethylene grille.

Pictured is cabinet ECO724XP which can store up to 4 x 200 litre drums. You can choose this model from within the options. The default model within the range can store up to 2 x 200 litre drums.

Key features of the cabinet include:

  • Outer covering in galvanized and overpainted sheet metal
  • Certified large capacity collection sump in stainless steel with removable polyethylene grille
  • Door with lock and key

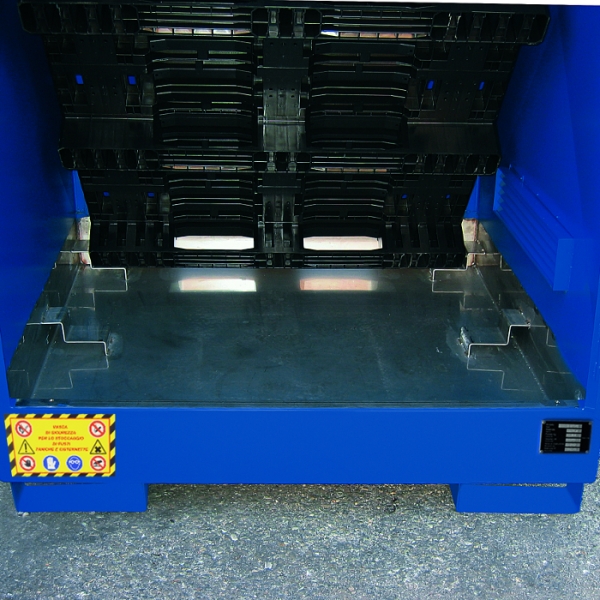

The collection tank is constructed entirely from stainless steel with a polyethylene grille and conforms to the highest level of certification and is supplied with a warning panel and indentification plate fitted to the sump.

We can also fit optional air inlet ventilation grilles for storing flammable substances with the transit area equivalent to one thirtieth of the layout surface.

For shipping we only charge what it costs us to deliver the cabinets. We charge by the pallet to your postcode, which is calculated in the checkout - or you can collect for FREE from our premises in Kettering. The cabinets have a 4-6 week lead time.

UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards.

  • UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing
  • UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles
  • UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles
  • UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability
  • UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels
Corrosive Symbol Environment Symbol StawaR Certification Suitable for outdoors
Drum Storage Cabinets
ProductDimensionsNet Door OpeningSump VolumeLoad Capacity
ECO722XP 2 Drum 1360x920x1845 mm 1250x1460 mm 214 L 850 kg
ECO724XP 4 Drum 1360x1320x1815 mm 1250x1460 mm 271 L 850 kg

For large orders please contact us.

Delivery is extra click for estimate
