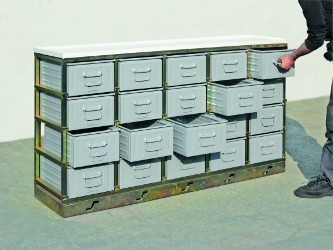

Shelves for Modular Picking Bins & Tote Pans

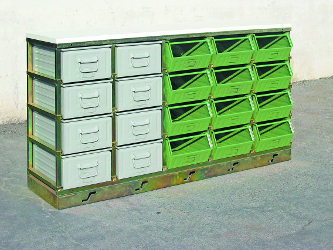

Our shelving can hold either our rectangular tote pans or our chute front picking bins and is an ideal solution for saving space whilst allowing the easy distribution of materials.
It is quick and easy to open a container door which is then prevented from coming out completely due to a hook which is part of the shelf.
By attaching specific accessories to the shelves, plinth, dust guard and worktops, it is possible to transform the shelves into practical benches. The shelves can accommodate our SC 300, 400 and 500 boxes.
The shelf must be fixed to the floor or wall and the standard colour is grey. The shelves have a 3 week lead time.
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA316 | 1025 x 310 x 885H | Shelves hold 16 of SC300 | 2 Max 3 | 960 kg 640 kg | 60 kg 40 kg |
| COP316 | 1020 x 315 x 20H | Dust Guard Top | |||
| PIL316 | 1025 x 315 x 32H | Worktop | |||
| ZOC316 | 1020 x 315 x 85H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|

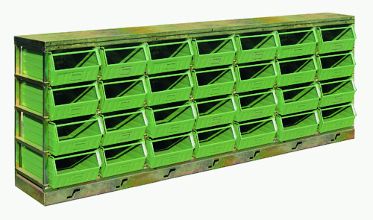

| SCA328 | 1765 x 310 x 885H | Shelves hold 28 of SC300 | 2 Max 3 | 1680 kg 1120 kg | 60 kg 40 kg |
| COP328 | 1765 x 315 x 20H | Dust Guard Top | |||
| PIL316 | 1770 x 315 x 32H | Worktop | |||
| ZOC316 | 1765 x 315 x 85H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA412 | 1075 x 460 x 885H | Shelves hold 12 of SC400 | Max 3 | 1200 kg | 100 kg |
| COP412 | 1070 x 465 x 20H | Dust Guard Top | |||
| PIL412 | 1075 x 465 x 32H | Worktop | |||
| ZOC412 | 1070 x 465 x 85H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA420 | 1765 x 460 x 885H | Shelves hold 20 of SC400 | Max 3 | 1600 kg | 80 kg |
| COP420 | 1765 x 465 x 20H | Dust Guard Top | |||
| PIL420 | 1770 x 465 x 32H | Worktop | |||
| ZOC420 | 1765 x 465 x 85H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA430 | 1765 x 460 x 1300H | Shelves hold 30 of SC400 | 2 Max 3 | 2400 kg 1500 kg | 80 kg 50 kg |
| COP420 | 1765 x 465 x 20H | Dust Guard Top | |||
| PIL420 | 1770 x 465 x 32H | Worktop | |||
| ZOC420 | 1765 x 465 x 85H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA506 | 1125 x 660 x 1180H | Shelves hold 6 of SC500 | Max 3 | 1200 kg | 200 kg |
| COP506 | 1120 x 665 x 30H | Dust Guard Top | |||
| ZOC506 | 1125 x 660 x 155H | Plinth |
| Code | Dimensions in mm | Description | Stackable | Capacity | Box Capacity |
|---|---|---|---|---|---|
| SCA509 | 1670 x 660 x 1180H | Shelves hold 9 of SC500 | Max 3 | 1800 kg | 200 kg |
| COP509 | 1667 x 665 x 30H | Dust Guard Top | |||
| ZOC509 | 1670 x 660 x 155H | Plinth |
